Strong signal outside.
Missed calls downstairs.
The rooftop had strong cellular service. The lower level had very little usable coverage.

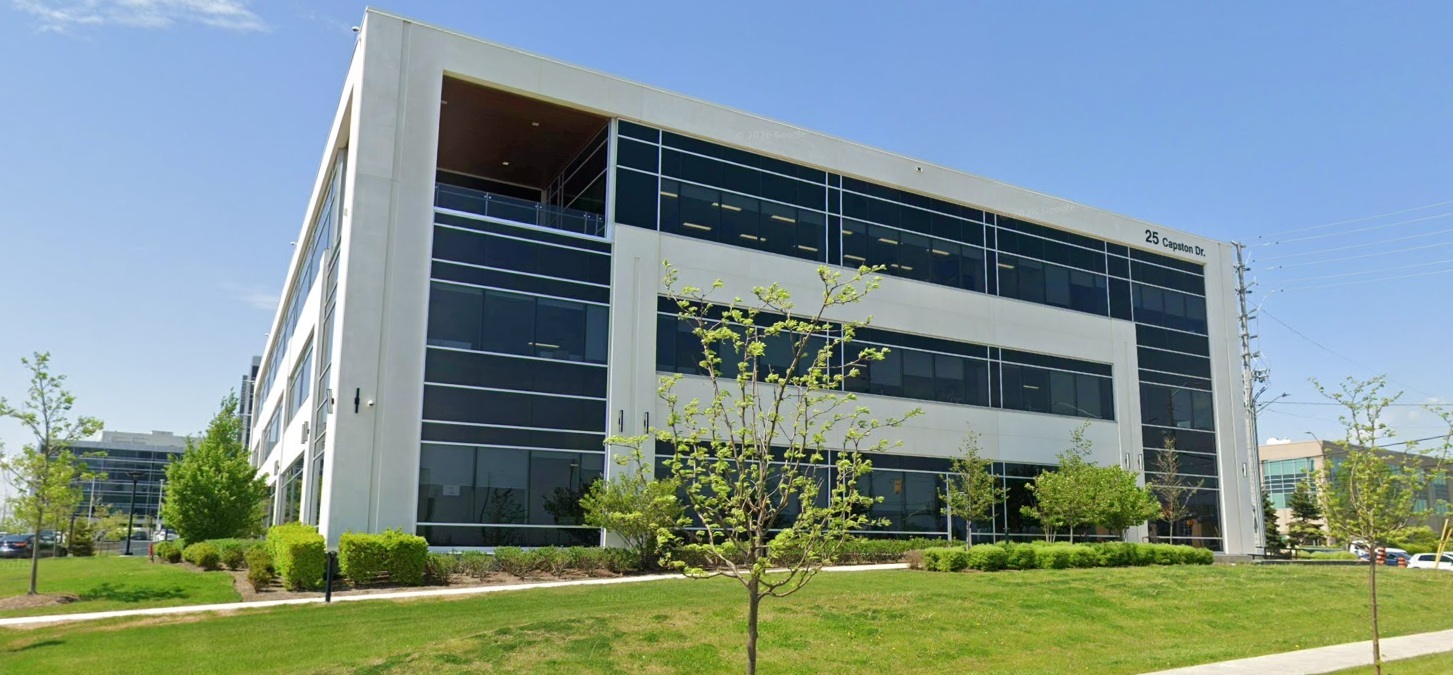

At this public-facing community centre, missed calls and unreliable voice service affected the team’s ability to communicate. The solution needed to serve a mixed carrier population, rather than a single provider.
“Calls were not being received due to having no service, including outgoing calls. When on calls, it was difficult to communicate due to the lack of service.”
Customer feedback before installation
The right spectrum.
Right where it was needed.

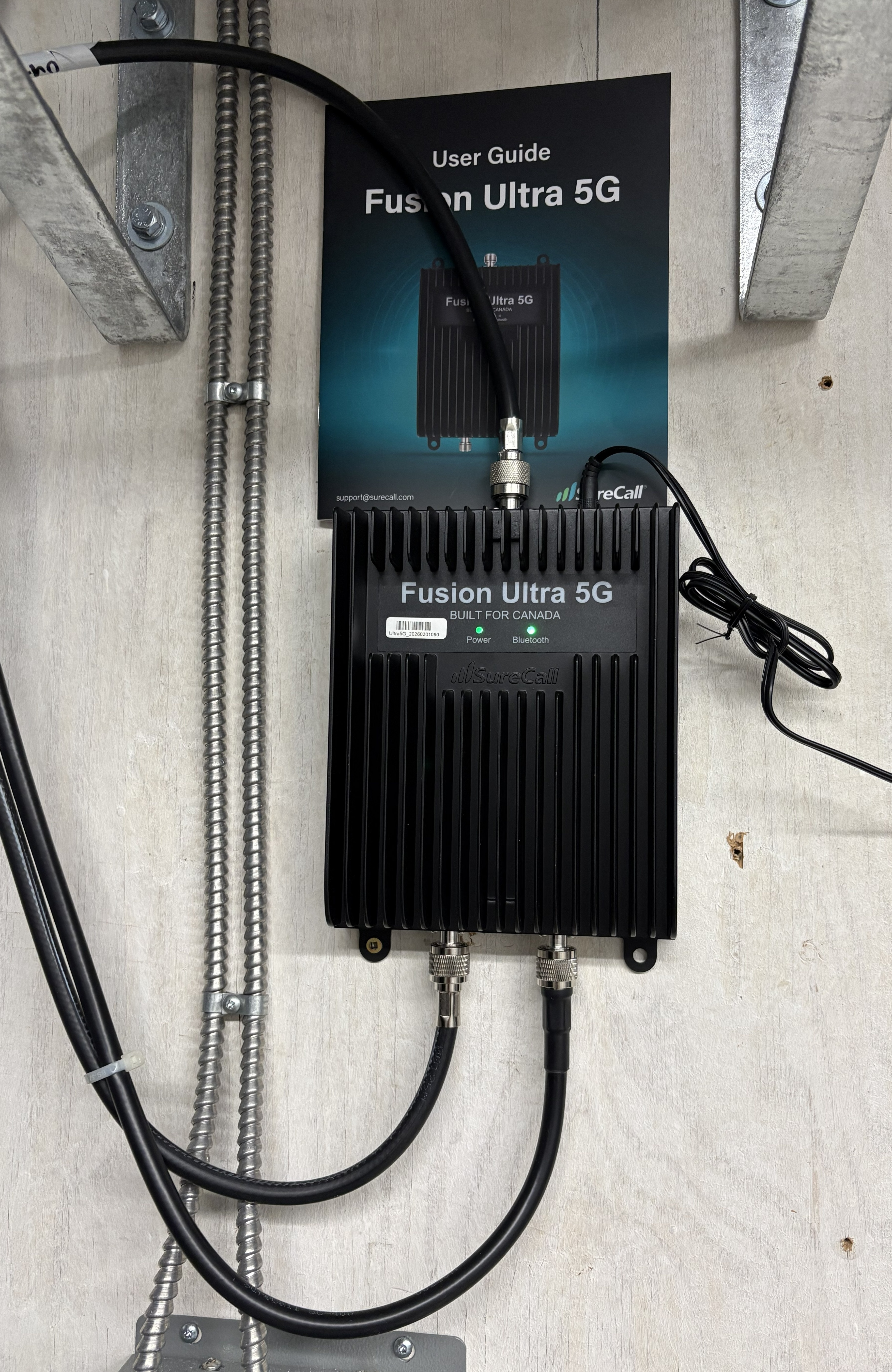

The important part was not simply adding gain. Fusion Ultra 5G is described in the case study as Canada’s only eight-band commercial cell signal booster, supporting all major Canadian carriers.
That includes AWS-3 and Band 7—mid-band spectrum conventional commercial boosters leave behind. It made the system a clear fit for the carrier mix at this Mississauga site.
- Strong rooftop donor signal to work with
- Eight-band coverage for major Canadian networks
- More RF power at each indoor antenna, reducing cable, installation time and disruption
A one-day deployment.
A smaller hardware footprint.

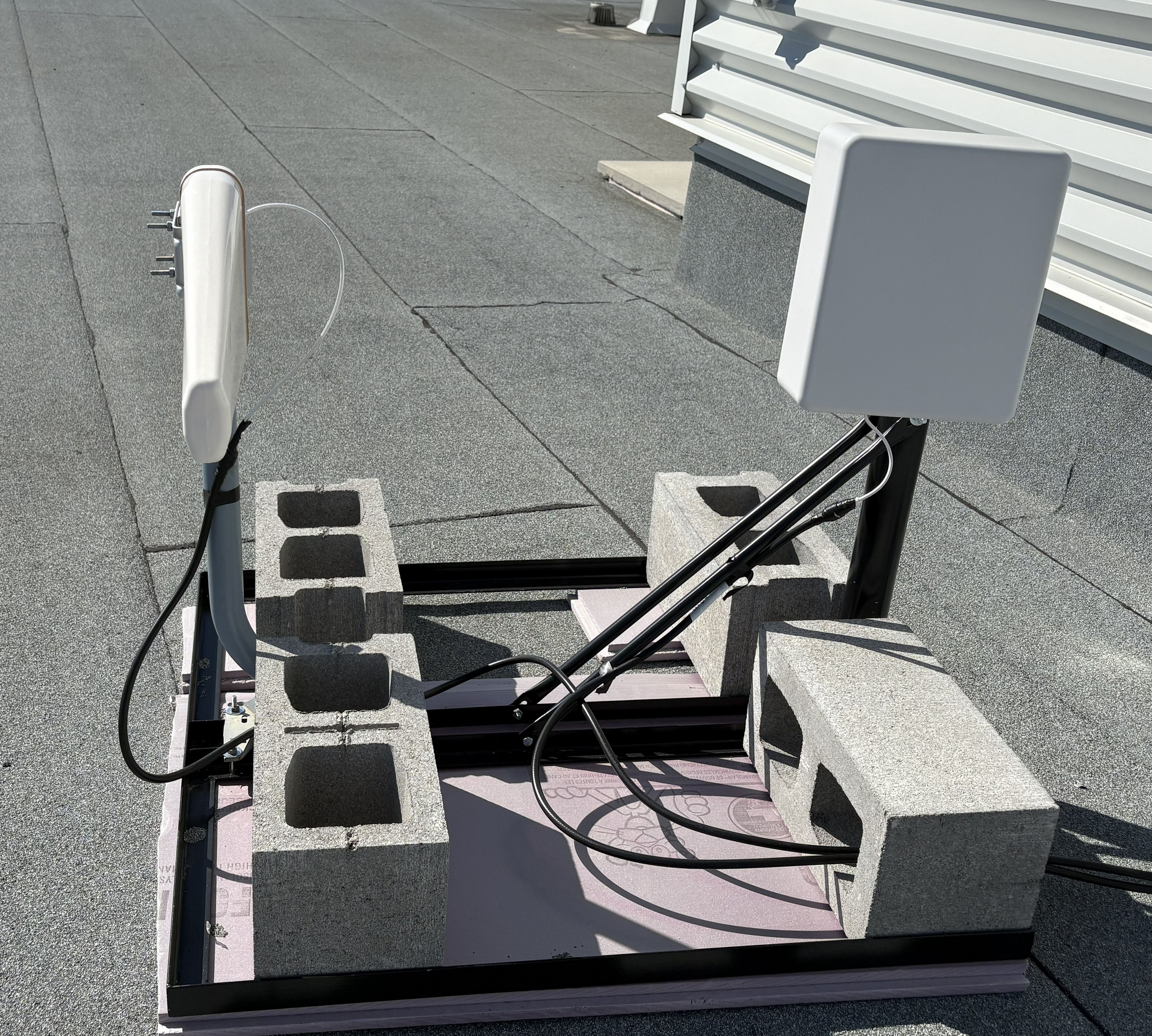

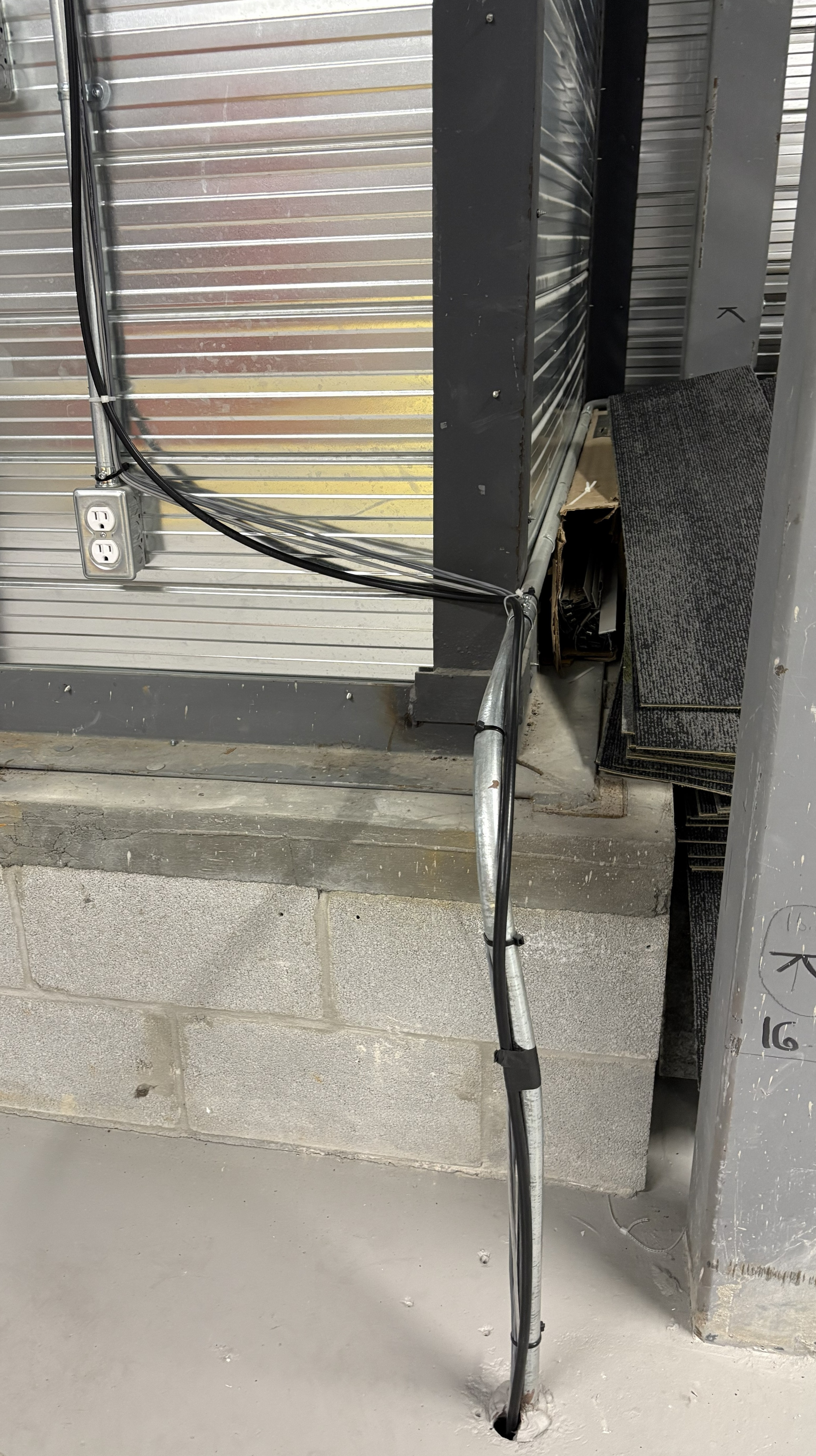

Extendacell Technologies installed and commissioned the complete system in one day. High-gain rooftop donor antennas captured the strong outdoor signals, while the compact design reduced installation labour and complexity.

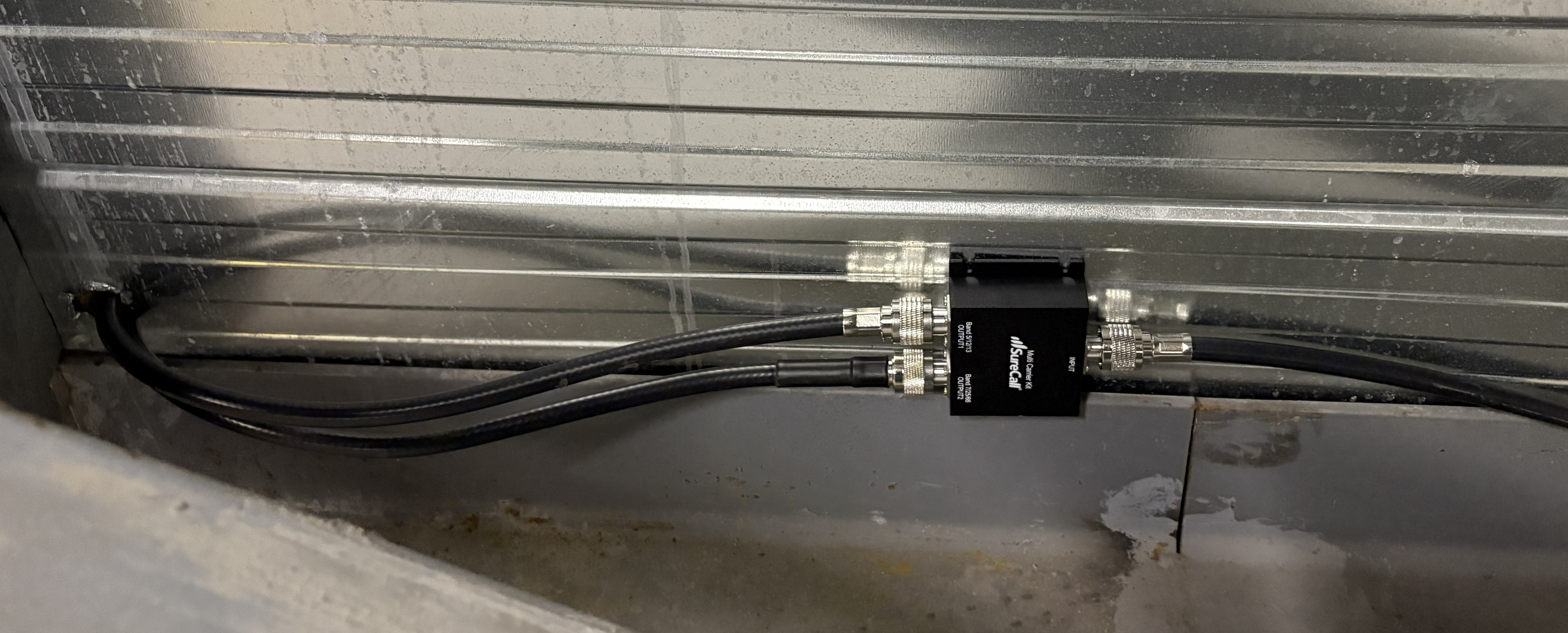

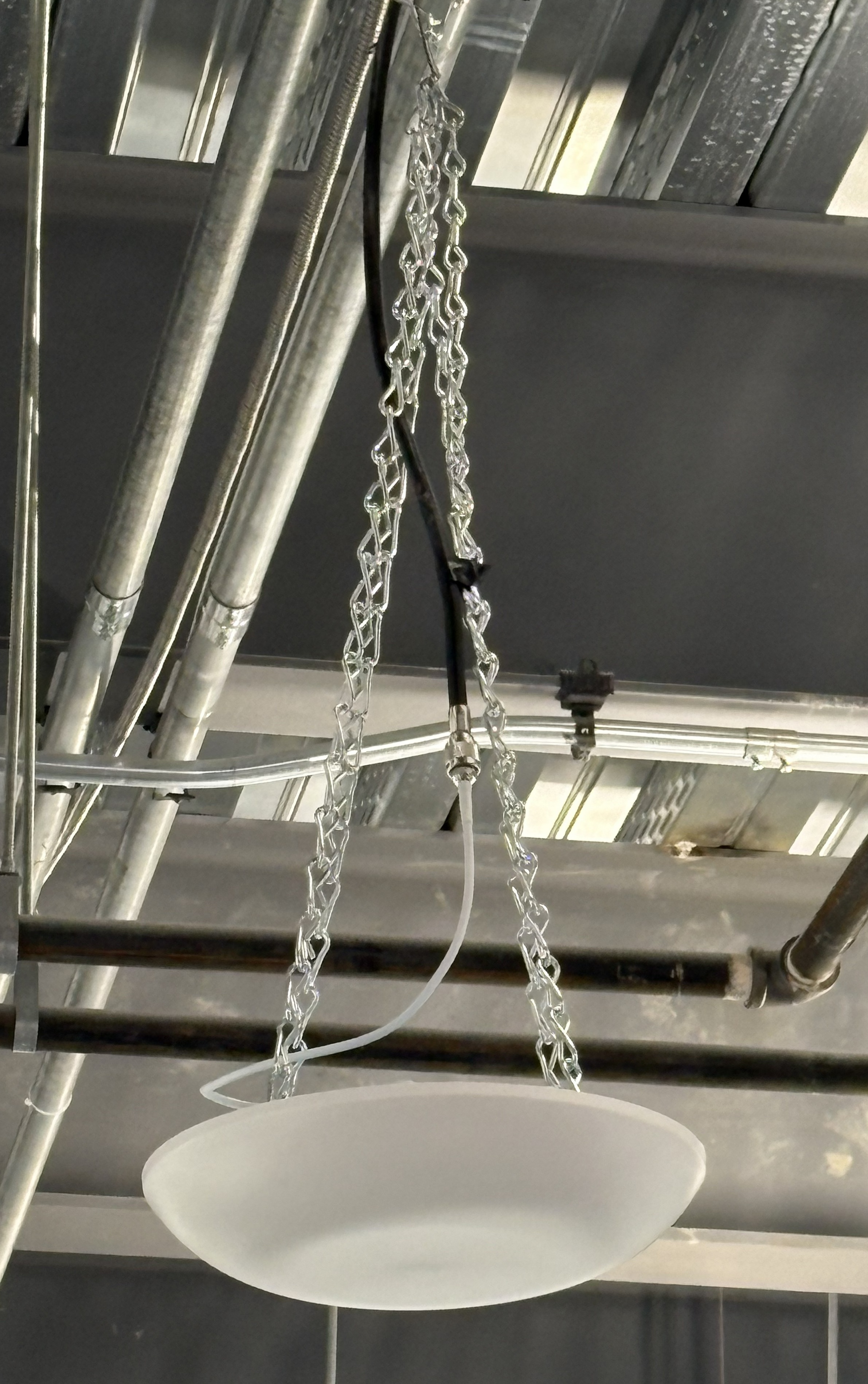

Two independent downlink ports fed the indoor antennas directly, avoiding splitter loss and preserving more power at each coverage point. Approximately 25,000 sq ft of lower-level space was covered with minimal hardware, cabling and disruption.
From the installer“Fusion Ultra 5G gave us the coverage and carrier-band support the customer needed—approximately 25,000 square feet from only two indoor antennas—in a straightforward system we could install in one day. Faster installations and lower costs mean better value for the client.”
Terry, Extendacell Technologies
