Increase 5G connectivity with the ONLY commercial cell booster in Canada that amplifies 8 frequency bands providing double the amplified spectrum of traditional boosters. Fusion Ultra 5G is the only commercial booster that includes the high capacity and high priority mid-bands 66 & 7 used by all Canadian carrier networks including Telus, Bell, Rogers, and Videotron. With 586 MHz of total amplified spectrum, which is more than any other commercial cell booster, Fusion Ultra 5G boosts more 5G and LTE-A delivering faster, real-time performance where other boosters lose connectivity.

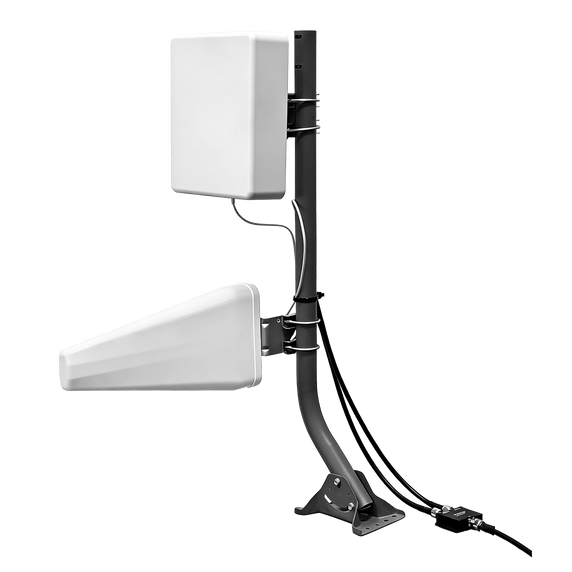

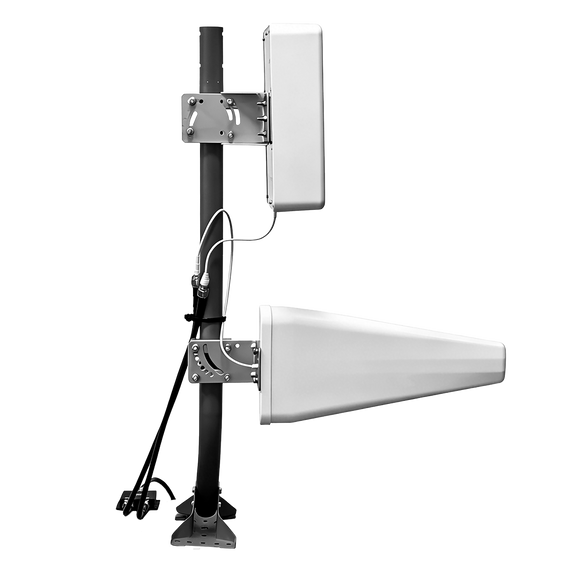

Fusion Ultra 5G comes equipped with dual outdoor antennas that significantly improve mid-band signal capture and multi-carrier performance. Dual high-power RF output ports deliver double the gain, power, and coverage area compared to other commercial boosters and flexible DC power cables enables installation where coverage is needed, not where the wall plug exists.
- Fusion Ultra 5G is the ONLY commercial cell signal booster in Canada that amplifies 8 frequency bands.
- Boosts 5G/4G voice, text, and data speeds for all phones on all Canadian carriers.
- Ultra-wideband 5G cellular signal booster for commercial buildings up to 30,000 sq ft.
- Amplifies 100% more 5G spectrum (586 MHz total) than traditional 5-band boosters.
- Dual high-power interior RF ports for double the gain, power, and coverage area.
- ‘SureCall’ Bluetooth App guides the user with aiming the outside Yagi and optimizing performance.
- No programming or additional monthly fees required and includes industry-best 3-year warranty.
Specifications
| Part Number: |
SC-FusionUltra5G-YP2U
SC-FusionUltra5G-YP2P |
| Uplink Frequency Range (MHz): |
663-698 / 698-716 / 7 76-787 / 824-849 / 1850-1915 / 1710-1780 / 2500-2570 |
| Downlink Frequency Range (MHz): |
617-652 / 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2180 / 2620-2690 |
| Supported Standards: |
5G, 4G LTE cellular standards |
| 8 Cellular Bands: |
71 / 12 / 13 / 5 / 2 5 / 4 / 66 / 7 |
| Impedance: |
50 Ω |
| Maximum Gain: |
75 dBm |
| Maximum Uplink Power EIRP: |
30 dBm |
| Maximum Downlink Power EIRP (per port): |
17 dBm |
| Number of Downlink Ports: |
2 |
| VWSR: |
≤ 2.0 |
| DC Power: |
9-19V |
| Cable: |
SC-400 |
| RF Connectors: |
N-Female (both ends) |
| Power Consumption: |
≤ 24W |
| Operation Temperature: |
-4° to +158° F (-20° to +70° C) |
| Dimensions: |
9.7" x 6.5" x 2" (24.7 x 16.5 x 5.1 cm) |
| Weight: |
5.7 lbs (2.6 kg) |
| Certification: |
IC ID: 7784A-FULTRA5G
Contains IC: 23236-PB03 and IC: 8595A-2AGQN4NNN |
